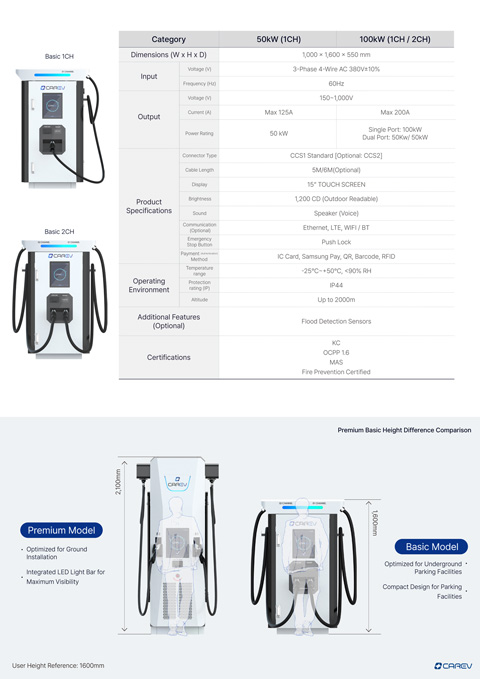

Page 15 - Uplusit Product catalog

Category 50kW (1CH) 100kW (1CH / 2CH)

Basic 1CH Dimensions (W x H x D) 1,000 x 1,600 x 550 mm
Voltage (V) 3-Phase 4-Wire AC 380V±10%
Input
Frequency (Hz) 60Hz

Voltage (V) 150~1,000V
Output Current (A) Max 125A Max 200A
Single Port: 100kW
Power Rating 50 kW
Dual Port: 50Kw/ 50kW

Connector Type CCS1 Standard [Optional: CCS2]
Cable Length 5M/6M(Optional)
Display 15” TOUCH SCREEN
Product Brightness 1,200 CD (Outdoor Readable)
Specifications Sound Speaker (Voice)
Communication Ethernet, LTE, WIFI / BT
Basic 2CH (Optional)
Emergency
Stop Button Push Lock
Payment (Authentication) IC Card, Samsung Pay, QR, Barcode, RFID
Method
Temperature -25℃~+50℃, <90% RH
range
Operating Protection
Environment rating (IP) IP44
Altitude Up to 2000m
Additional Features
(Optional) Flood Detection Sensors
KC
OCPP 1.6
Certifications
MAS
Fire Prevention Certified

Premium Basic Height Difference Comparison

2,100mm

Premium Model 1,600mm

• Optimized for Ground Basic Model
Installation
Optimized for Underground •
Integrated LED Light Bar for Parking Facilities
•
Maximum Visibility
Facilities
Compact Design for Parking •

User Height Reference: 1600mm
