P. 11

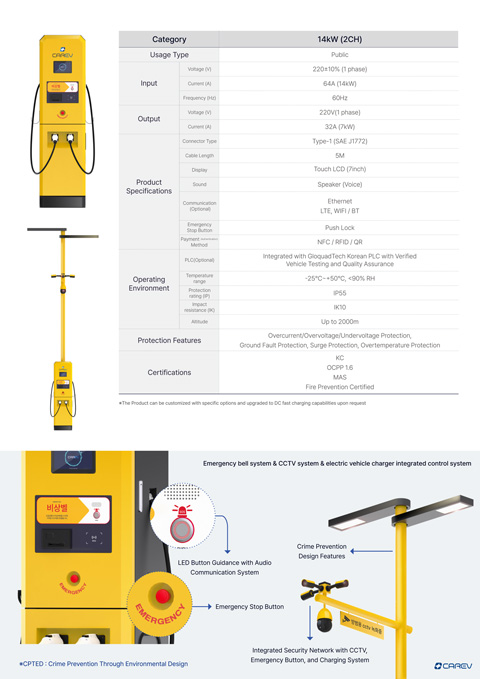

Category 14kW (2CH)
Usage Type Public
Voltage (V) 220±10% (1 phase)
Input Current (A) 64A (14kW)
Frequency (Hz) 60Hz
Voltage (V) 220V(1 phase)
Output
Current (A) 32A (7kW)
Connector Type Type-1 (SAE J1772)
Cable Length 5M
Display Touch LCD (7inch)
Product Sound Speaker (Voice)
Specifications
Communication Ethernet
(Optional) LTE, WIFI / BT
Emergency
Stop Button Push Lock
Payment (Authentication) NFC / RFID / QR
Method
Integrated with GloquadTech Korean PLC with Verified
PLC(Optional)
Vehicle Testing and Quality Assurance
Operating Temperature -25℃~+50℃, <90% RH
range
Environment Protection
rating (IP) IP55
Impact IK10
resistance (IK)
Altitude Up to 2000m
Overcurrent/Overvoltage/Undervoltage Protection,
Protection Features
Ground Fault Protection, Surge Protection, Overtemperature Protection
KC
OCPP 1.6
Certifications
MAS
Fire Prevention Certified
※The Product can be customized with specific options and upgraded to DC fast charging capabilities upon request
Emergency bell system & CCTV system & electric vehicle charger integrated control system
Crime Prevention
Design Features
LED Button Guidance with Audio
Communication System
Emergency Stop Button
Integrated Security Network with CCTV,
※CPTED : Crime Prevention Through Environmental Design Emergency Button, and Charging System
