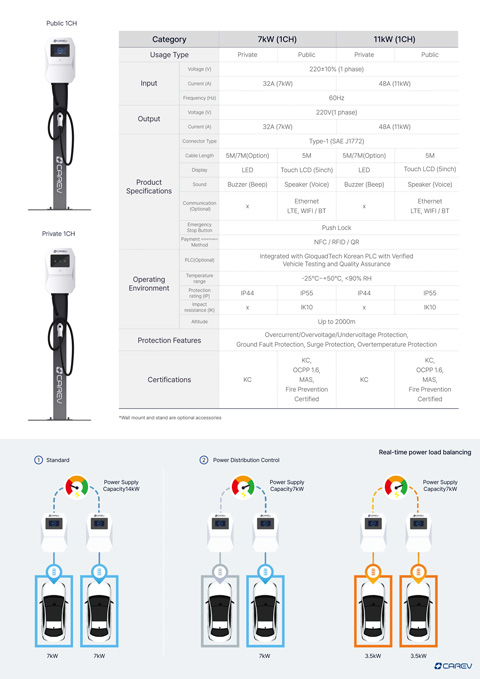

Public 1CH
Category 7kW (1CH) 11kW (1CH)

Usage Type Private Public Private Public
Voltage (V) 220±10% (1 phase)
Input Current (A) 32A (7kW) 48A (11kW)

Frequency (Hz) 60Hz
Voltage (V) 220V(1 phase)
Output
Current (A) 32A (7kW) 48A (11kW)
Connector Type Type-1 (SAE J1772)

Cable Length 5M/7M(Option) 5M 5M/7M(Option) 5M
Display LED Touch LCD (5inch) LED Touch LCD (5inch)
Product Sound Buzzer (Beep) Speaker (Voice) Buzzer (Beep) Speaker (Voice)
Specifications
Communication x Ethernet x Ethernet
(Optional) LTE, WIFI / BT LTE, WIFI / BT
Emergency Push Lock
Private 1CH Stop Button
Payment (Authentication) NFC / RFID / QR
Method
Integrated with GloquadTech Korean PLC with Verified
PLC(Optional)
Vehicle Testing and Quality Assurance
Operating Temperature -25℃~+50℃, <90% RH
range
Environment Protection
rating (IP) IP44 IP55 IP44 IP55
Impact x IK10 x IK10
resistance (IK)
Altitude Up to 2000m
Overcurrent/Overvoltage/Undervoltage Protection,
Protection Features
Ground Fault Protection, Surge Protection, Overtemperature Protection
KC, KC,
OCPP 1.6, OCPP 1.6,
Certifications KC MAS, KC MAS,
Fire Prevention Fire Prevention
Certified Certified

*Wall mount and stand are optional accessories

Real-time power load balancing
1 Standard 2 Power Distribution Control

Power Supply Power Supply Power Supply
Capacity14kW Capacity7kW Capacity7kW

7kW 7kW 7kW 3.5kW 3.5kW
